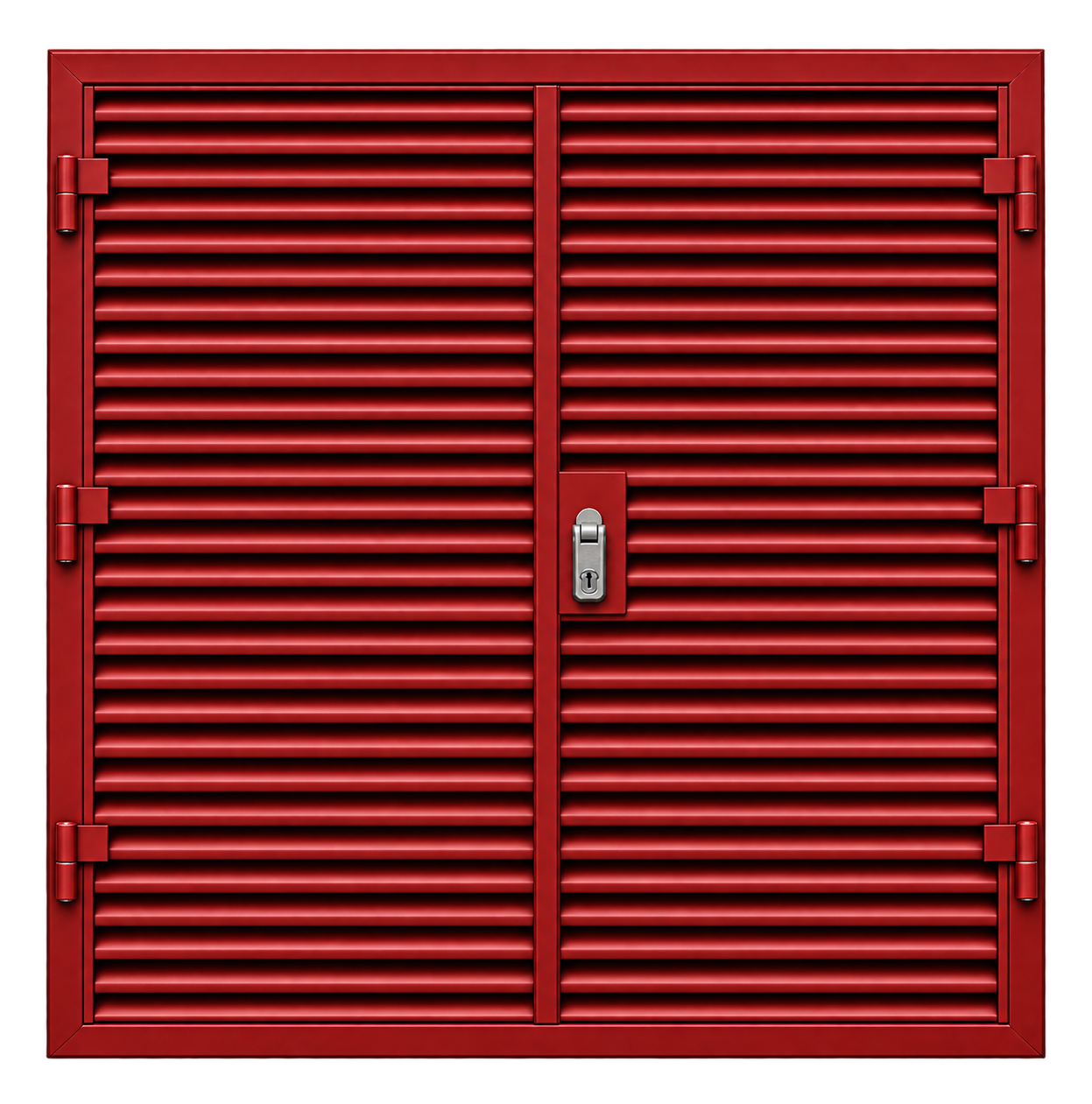

Specifying ventilation into a fire compartment has usually meant accepting a compromise somewhere, whether in free area, in fire integrity or in security. The fully louvred SR2 FR doorset is built to remove it, ventilating the opening through a fully bladed leaf while maintaining fire integrity for durations up to 90 minutes, tested to BS EN 1634-1 and classified in accordance with EN 13501-2, and certified to Loss Prevention Standard LPS 1175 Issue 8 at Security Rating 2 (B3). Plant rooms, substations, switch rooms and riser cupboards can therefore be ventilated without weakening either fire compartmentation or the security line.

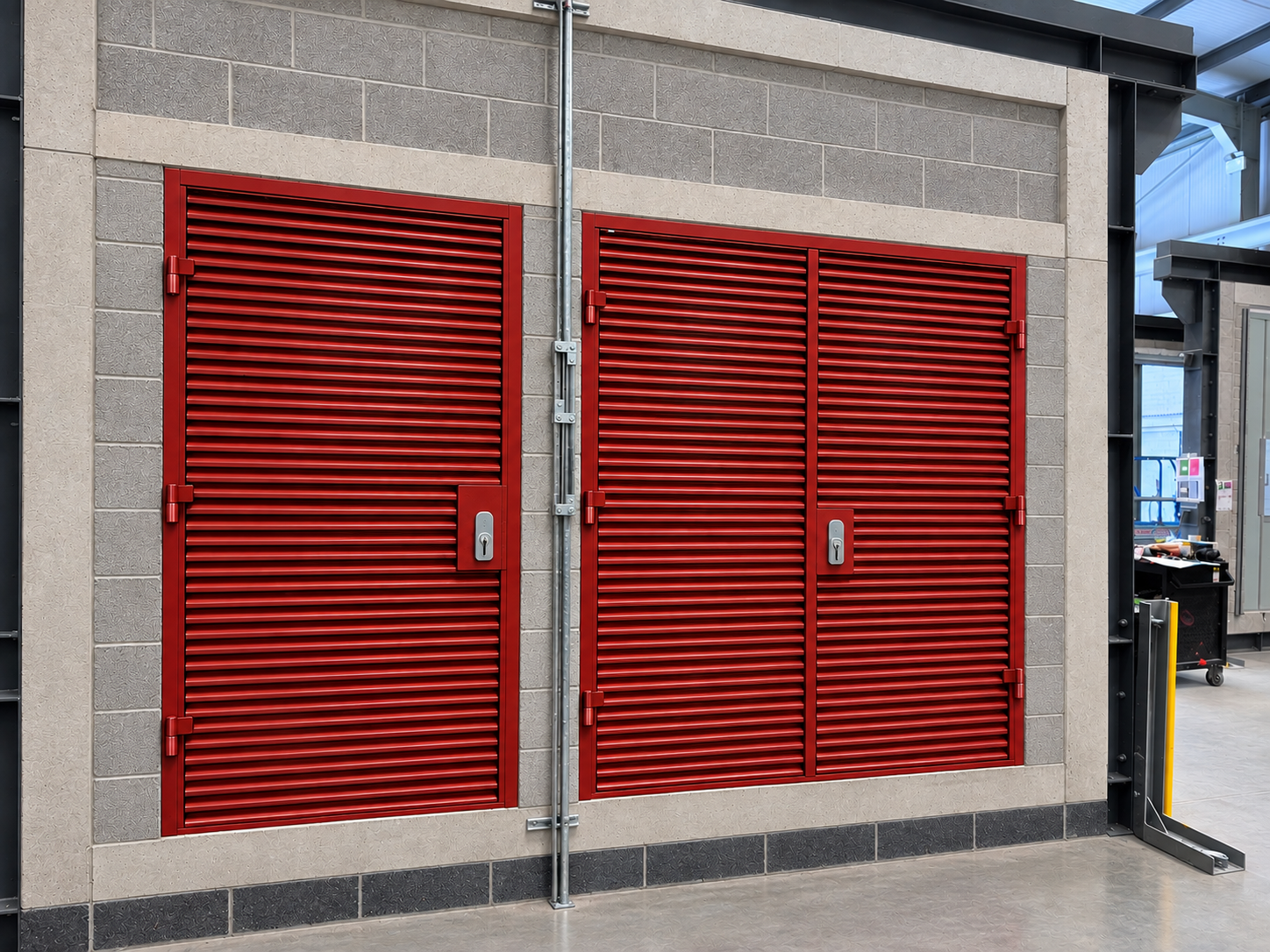

Doorsets are available in single, double and leaf-and-a-half configurations, opening outward, to suit structural openings ranging from 430mm wide by 1000mm high for a single leaf up to 2400mm wide by 2400mm high for a double, with the achievable range depending on configuration and rating. Each 50mm leaf is fabricated from 50 x 65 x 5mm mild steel angle with 2.5mm louvre blades set at a 49 degree angle, backed by fire block panels and anti-vermin mesh, and hung on a minimum of three factory assembled lift off hinges so that fitting on site remains straightforward. Rear concealed fixings keep the face clean and allow the doorset to sit alongside the wider Sunray louvre range without a visual break.
Manufactured in Ashford, Kent. Datasheets, certification and fitting instructions are available on request.
Structural openings to suit the configuration and rating. Single leaf from 430mm wide x 1000mm high up to 1500mm wide x 2400mm high. Double leaf from 730mm wide x 1000mm high up to 2400mm wide x 2400mm high. Single, double and leaf-and-a-half configurations. Outward opening.
50mm thick leaf manufactured from 50 x 65 x 5mm mild steel angle. Louvre blades in 2.5mm mild steel prime HRPO coil, set at a 49 degree angle. Fire block panels with anti-vermin mesh to the rear. Minimum three factory assembled lift off hinges per leaf. Proprietary reinforcement to suit the specified intruder resistance classification.
Fully welded or demountable framework in 100 x 50 x 3mm mild steel hollow box section with a 100 x 10mm plate threshold. Door stops fitted to the inside of the framework in 40 x 20 x 2mm hollow box section. Other box sections, plates and orientations available on request.
Third party certified fire performance up to E90, giving 90 minutes fire integrity. Tested to BS EN 1634-1 and classified in accordance with EN 13501-2. Duration is specification dependent.
Certified to Loss Prevention Standard LPS 1175 Issue 8. Security Rating 2, certificate number 234t Part 2. Security Rating 2 Mk3, certificate number 234u Part 2. Secured by Design accredited.
Excellent airflow characteristics through the fully louvred leaf. Free area subject to blanking and fire block panel requirements.
Concealed through frame fixing or variable anchorage cleats, welded or demountable, to suit demanding and diverse structural opening layouts. Compatible substrates include blockwork, concrete and structural brickwork. Expansion anchors for masonry and concrete. Perimeter gap sealed with manufacturer approved fire sealant, Sikasil 670 with Sika Sikaseal 414 backer rod.
Bright mild steel heavy duty lift off hinges. Surelock McGill Slimline range multi-point surface mounted locks, including access controlled versions, conforming to BS EN 1125 and BS EN 179. Unique anti-fishing device tailored to the locking system depending on the mode of egress. Sunray surface mounted barrel bolts. Dorma TS 93 overhead door closers conforming to BS EN 1154. Hardware factory fitted as standard.
All steelwork shot blasted prior to paint system application. Primer coat: marine grade corrosion resistant zinc rich primer, 60 to 80 microns thickness. Top coat: architectural grade polyester powder coat, 30% gloss level, 60 to 80 microns thickness. Standard stock colour range of 58 colours. Other colours and finishes available on request at additional cost and with longer lead times.
Packers to partition between Sunray products and structural openings, formed from mild steel hollow box sections or plates. Customisation trims to cover unsightly structural features and finishes. Optional weather canopy fitted above the frame head member for coastal locations and those highly prone to precipitation.
